Cresbox

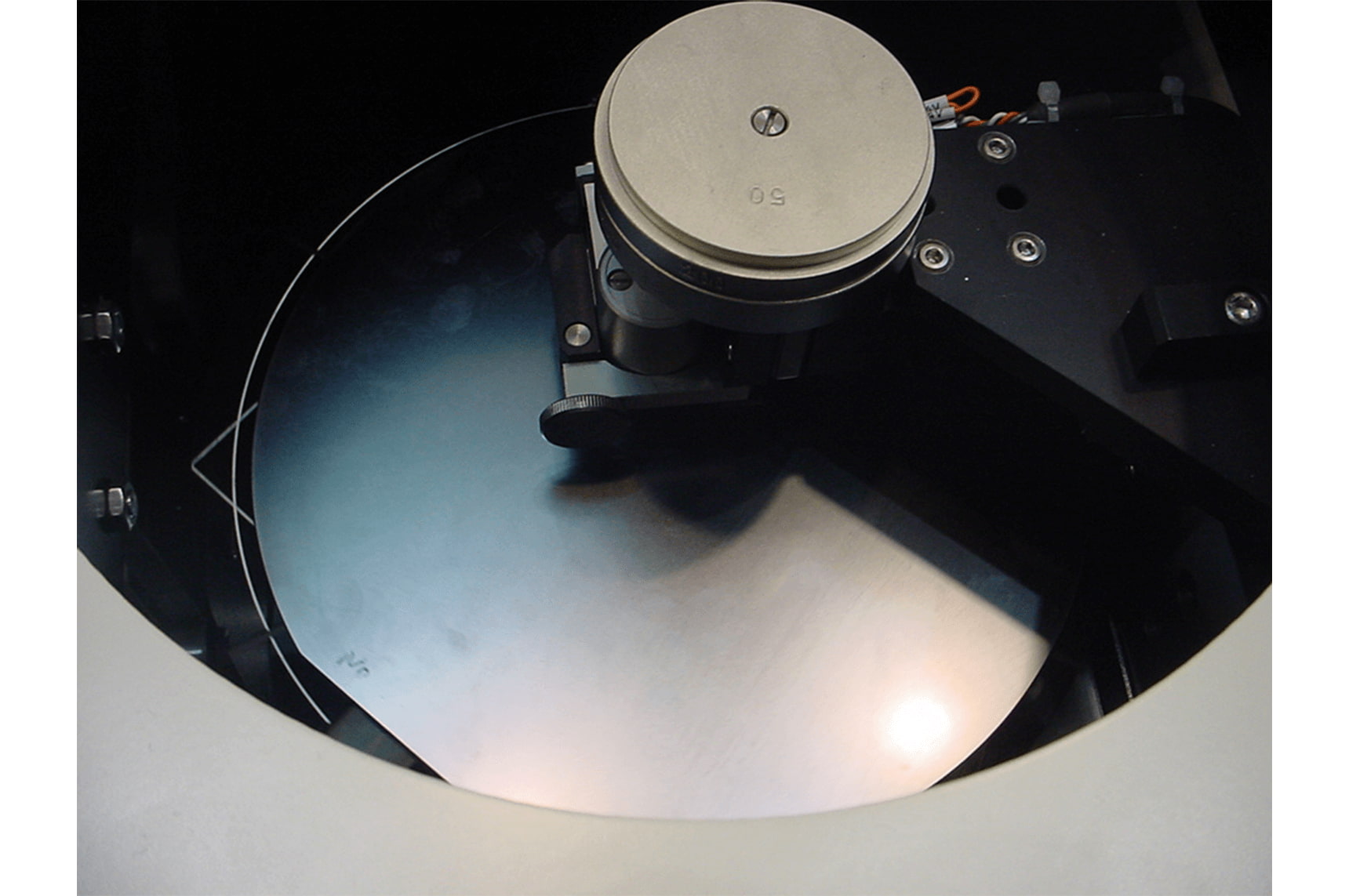

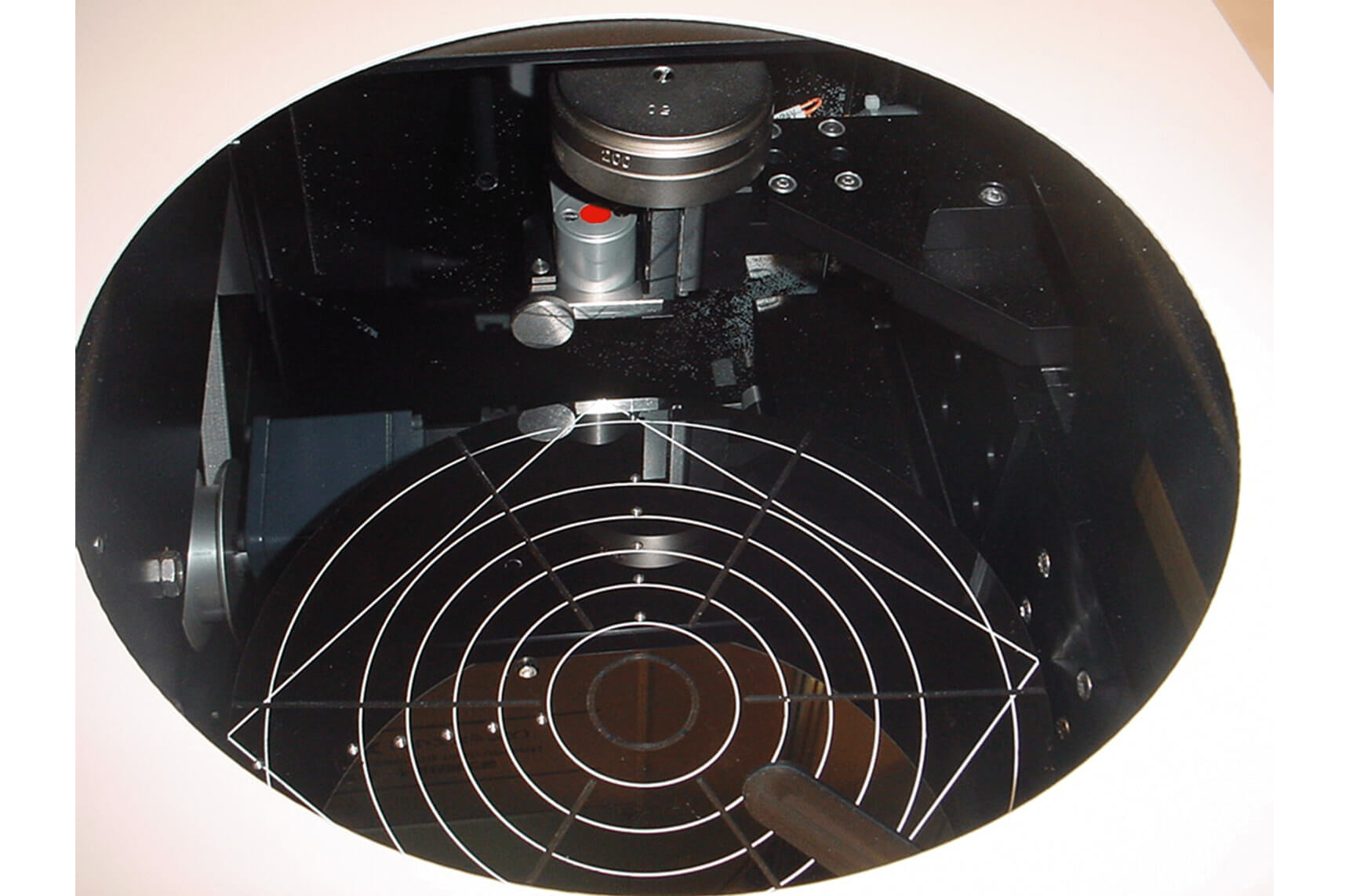

Semi-automatic / small foot print measuring instrument of resistivity / sheet resistance by 4 point probe method
Selling Points
User programmable measurement pattern
Tester self-test function, small foot print
Thickness, edge, temperature correction for silicon wafer
Film thickness conversion function from sheet resistance
Video
Details
Applications
- Semiconductor materilas, Solar-cell materials (Silicon, Polysilicon, SiC etc)
- New materials, functional materials (Carbon nanotube, DLC, graphene, Ag nanowire etc)
- Conductive thin film (Metal, ITO etc)
- Diffused sample (or layer)
- Silicon-related epitaxial materials, Ion-implantation sample
- Others (*Please contact us for details)
Sample sizes
~ 8 inch, ~156x156mm
Measuring range
[R] 1m~300k Ω・cm
[RS] 5m~10M Ω/sq
Size
W330×D600×H340 mm
Approx. 36 kg
Contact type resistance measurement
Semi-automatic (Multi point measurement)
