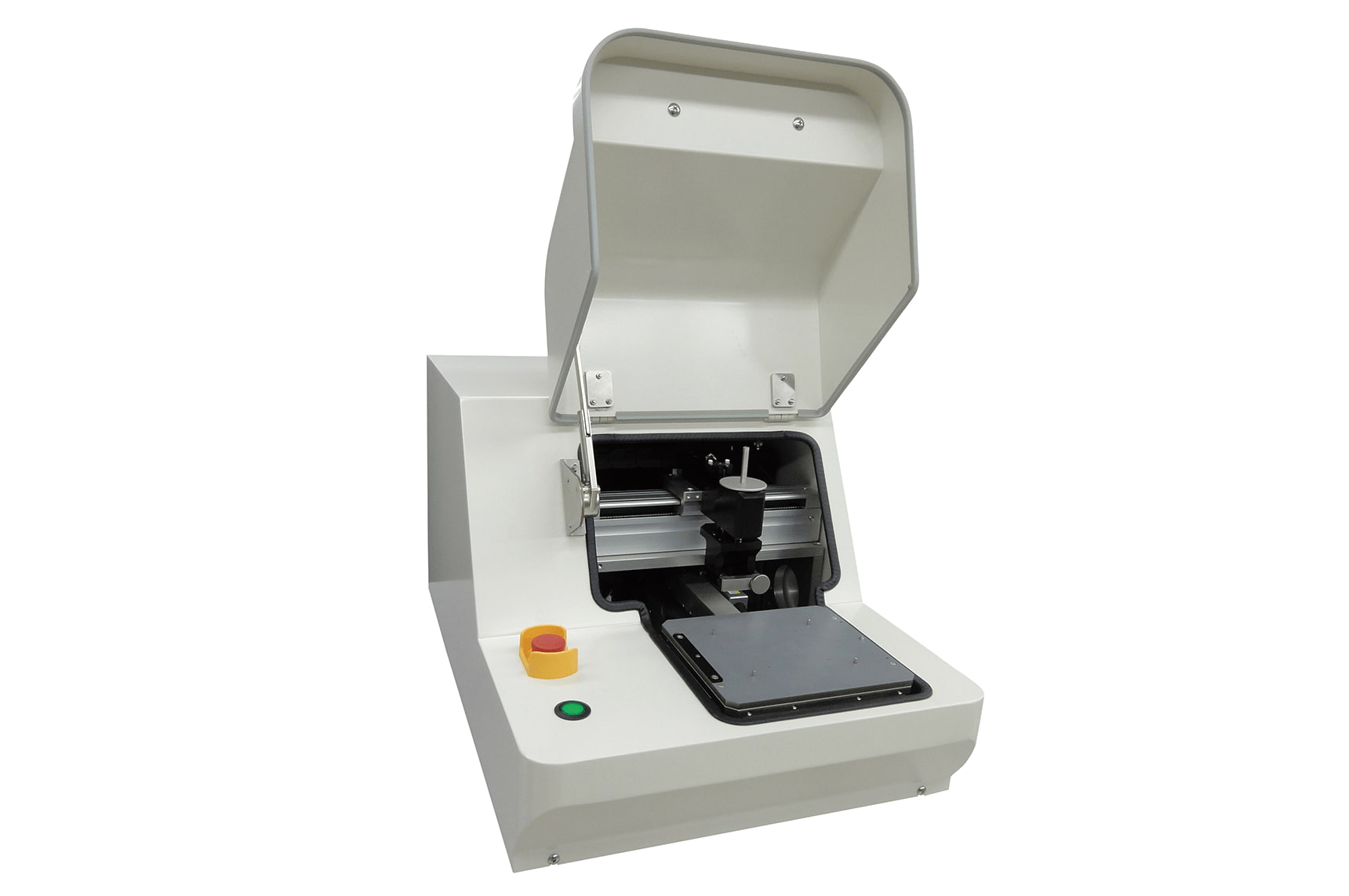

RG-200PV
Semi-automatic measuring instrument of resistivity / sheet resistance for solar cell by 4 point probe method

Selling Points

MULTI POINT

Contact type

PC & Software

X-Y moving mechanism for solar cell wafer
User programmable measurement pattern
Tester self-test functionv
Thickness, edge, temperature correction for silicon wafer

*We can offer the other one for FPD (RG-100)

Details

Applications

• Semiconductor materilas, Solar-cell materials (Silicon, Polysilicon, SiC etc)
• New materials, functional materials (Carbon nanotube, DLC, graphene, Ag nanowire etc)
• Conductive thin film (Metal, ITO etc)
• Diffused sample (or layer)
• Silicon-related epitaxial materials, Ion-implantation sample
• Others (*Please contact us for details)

Sample sizes

～210×210mm
*Other size will be available

Measuring range

[R] 1m~10k Ω・cm
[RS] 1m~1M Ω/sq

Size

W400×D325×H600mm
Approx. 35kg

Contact type resistance measurement
Semi-automatic (Multi point measurement)
