NC-600, NC-700
Built-in module of resistivity flat panel displayr by eddy current method (Non-contact)

Selling Points

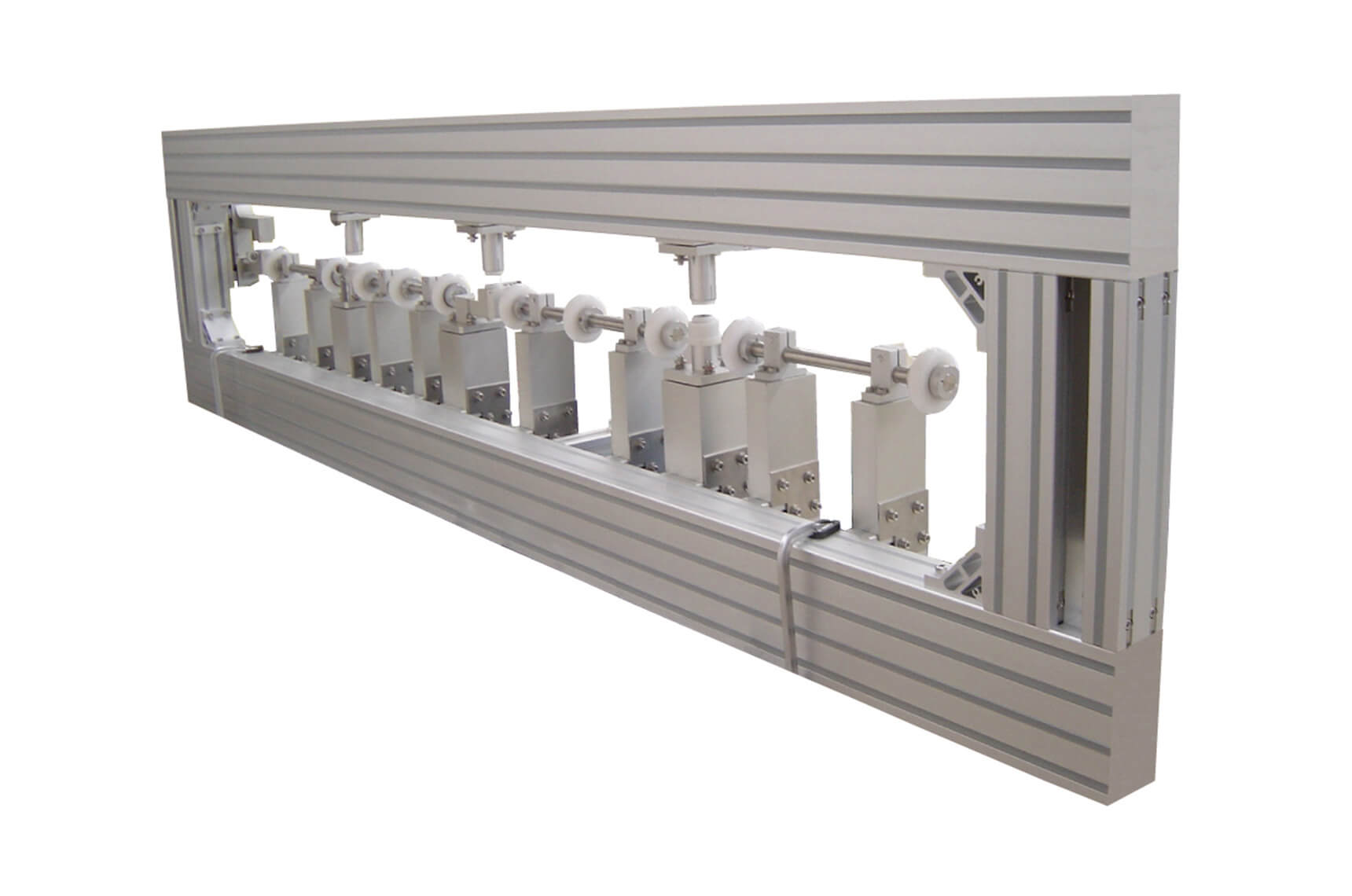

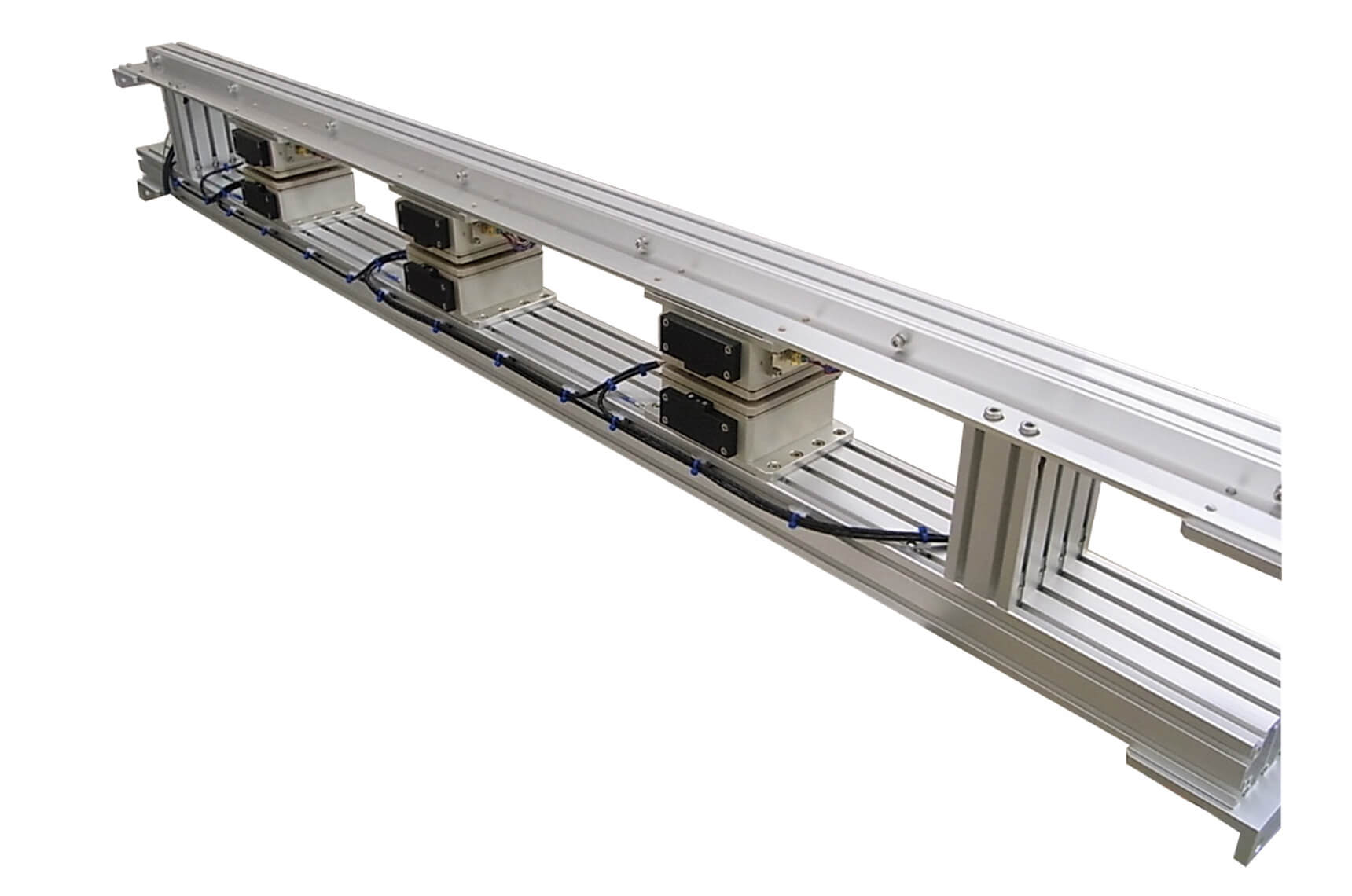

MULTI POINT

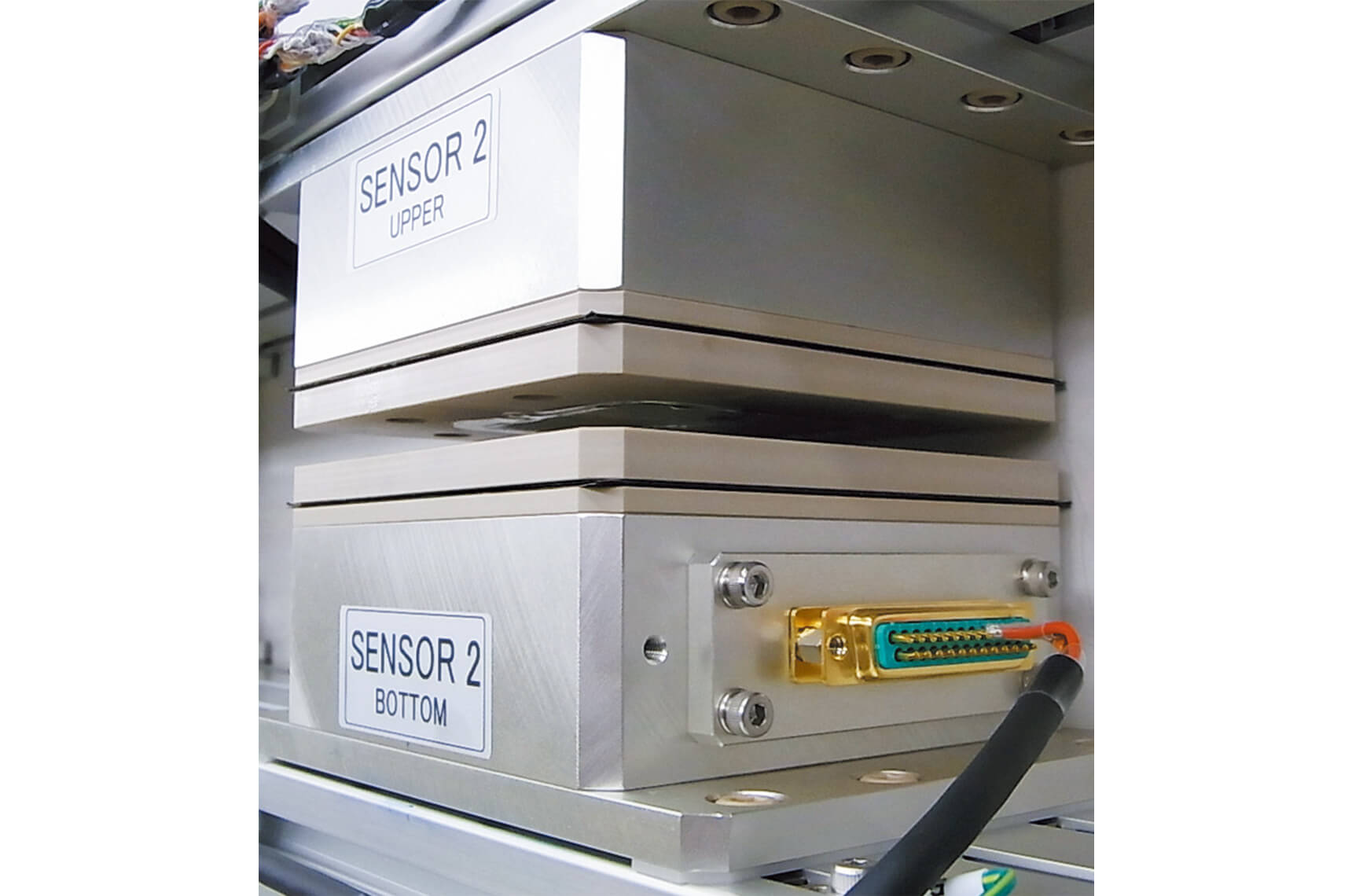

NON-Contact type

PC & Software

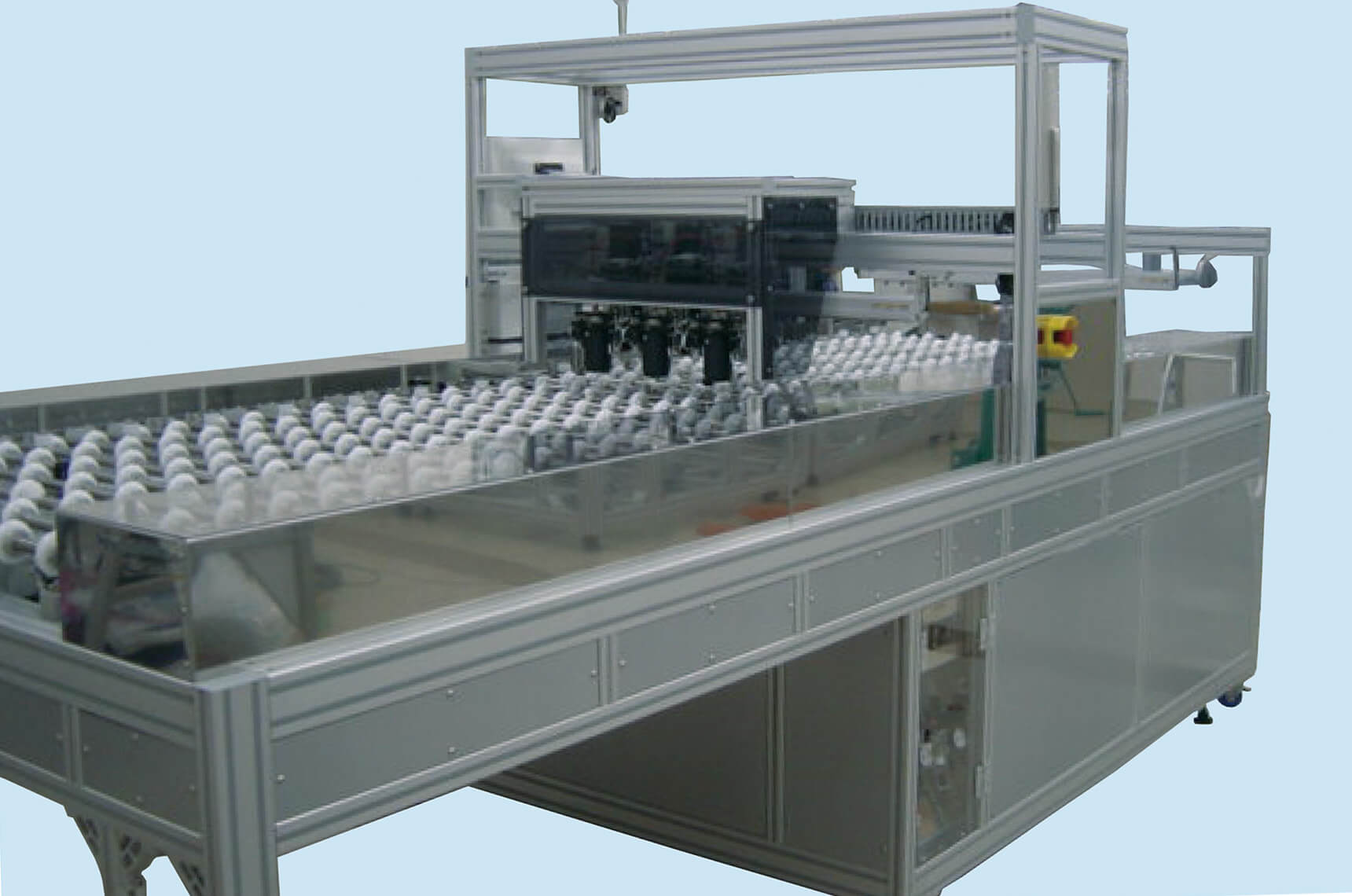

In-line module

Inline measurement module for moving substrates such as PET film, glass or paper
Continuous measurement(~24h) in Roll to Roll with OFF-SET FREE capability system
Various applications from the research and development to the production line

Details

Applications

• New materials, functional materials (Carbon nanotube, DLC, graphene, Ag nanowire etc)
• Conductive thin film (Metal, ITO etc)

Sample sizes

Please contact us in details

Measuring range

10～1000Ω/sq　[Standard range type]
(* Select a range from 1m ~2000 Ω/sq. Please contact us in details)
*Numbers of probe module : Selectable

Non-Contact type resistance measuremen

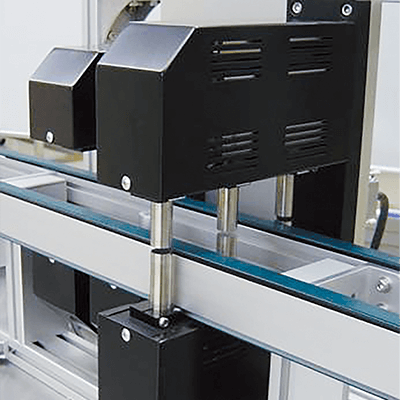

Built-in module

NC-110（NC-110PV）

Built-in module of resistivity for semicoductor by eddy current method (Non-contact)

Product Information

Non-Contact type resistance measurement

• Manual (1 point measurement)
• Semi-automatic (Multi point measurement)
• Fully automatic (with sample transfer system)
