PVE-80
Simple measuring instrument for ultra low measurement range by pulse-Voltage excitation method (Non-contact)

Selling Points

1POINT

NON-Contact type

PC & Software

No damage measurement by non-contact Pulse-Voltage excitation method

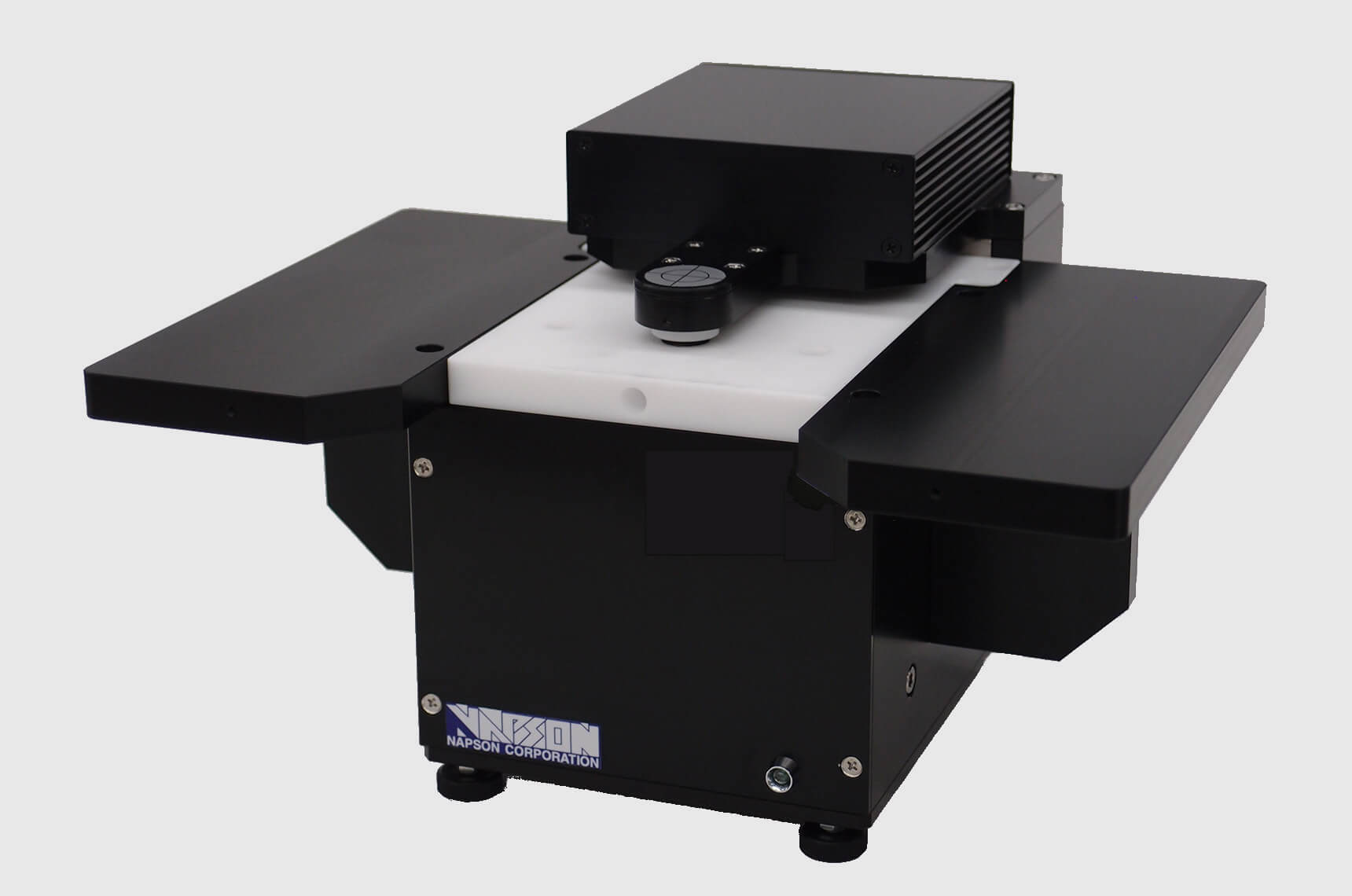

Easy to measure & carry around, Removable stage plate

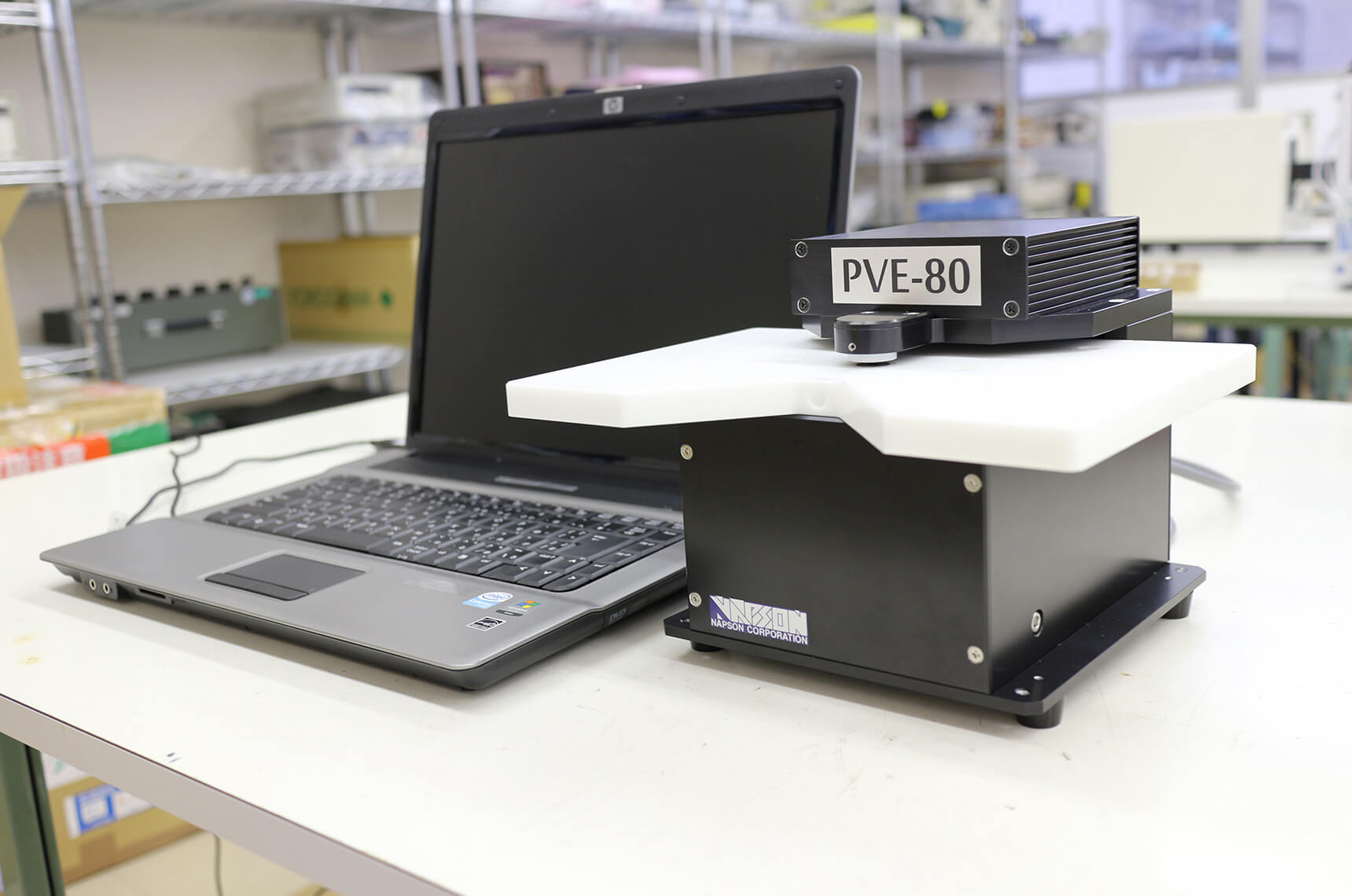

Easy operation and data processing by PC with Software
Measurement result can shown by 3 types of measurement unit(Sheet resistance[Ohm/Sq], Electric conductivity[S/cm], Electrical conduction[S])

*Pulse-Voltage excitation method : Pat. No.5386394
Joint development with Chiba Univ.

Details

Applications

• New materials, functional materials (Carbon nanotube, DLC, graphene, Ag nanowire etc)
• Conductive thin film (Metal, ITO etc)
• Others (*Please contact us for details)

Sample sizes

~W300 x D210mm

Measuring range

50μ ～ 1mΩ/sq

Non-Contact type resistance measurement
Manual (1 point measurement)
